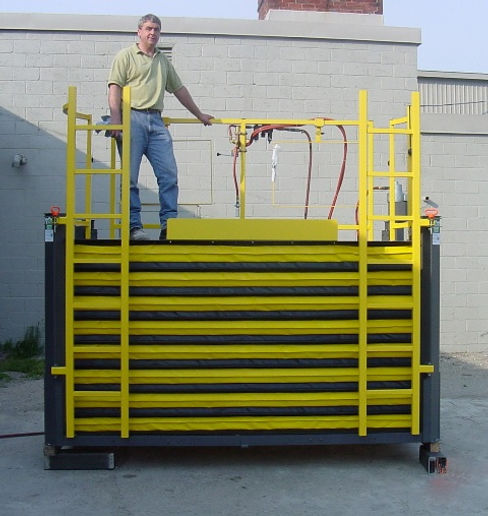

VLP Quad

The VLP quad column lift platform is ideal for large footprint and odd shaped applications where lifting tools, equipment or a worker is required. With its positive acme drive system, it excels at accurate platform placement without the use of hydraulics.


Key Features

  • Capacity rating of 1000 lbs

  • Easily adjusted manually, electrically or air driven

  • Variable height range on requirements with guarding provided

  • Custom top dimensions and footprint available

  • Minimal maintenance required

  • Electrical or manual crank

  • Units are shipped assembled, ready to bolt in place

The height range is variable based on the application's requirements with guarding provided per the regulations.

Product Models

Part number: 102-7228-1-1

  • Quad VLP

  • Custom top dimensions and custom foot print based on the customer's aplication.

  • May be manual crank operated or electrically adjusted.

  • Dimension: 68" x 46"

  • Weight: ~550 lbs

Construction:

  • Welded and assembled by CWB certified welders of heavy wall 5x5 tube, 1/8" mild steel checker plate, with a 1" acme screw drive.

  • Low maintenence is assured by the engineered hanging polymer nut drive system.

  • Range: 3" to 72"

  • Capacity: 1000 lbs
